| Product Classification | |
| Portfolio: | NETCONNECT® |
| Product Series: | SL Series |

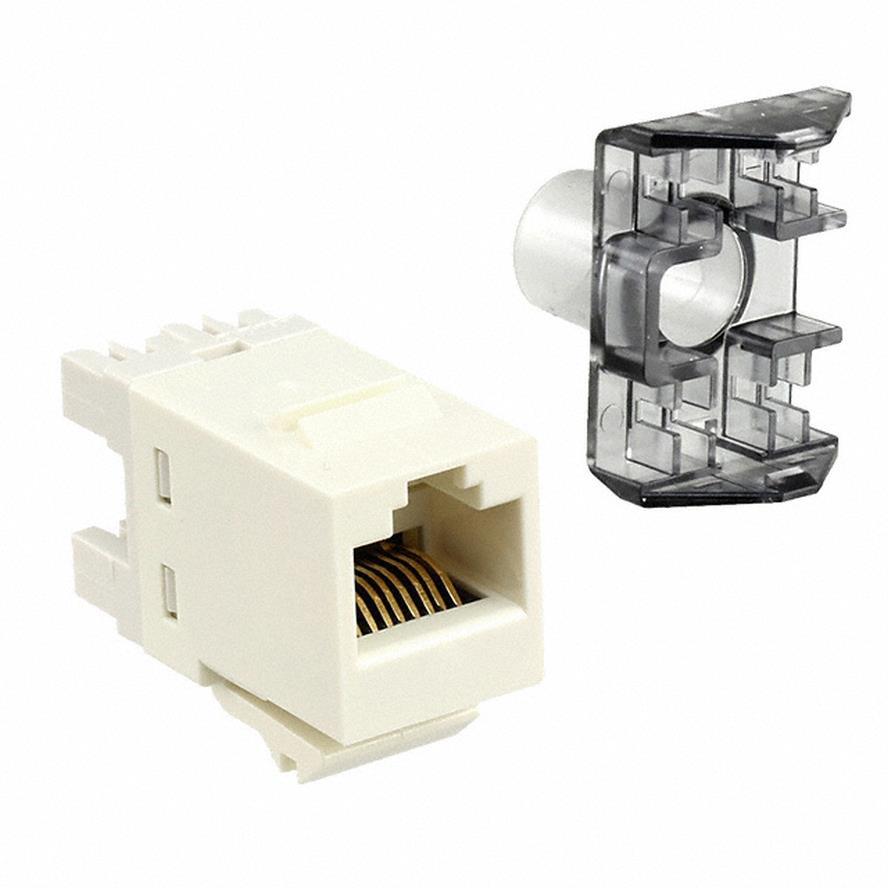

| Product Type: | Modular jack |
| Body Features | |
| 110 Block Material: | Polycarbonate |
| Inverted Jack Face: | Yes |
| Configuration Features | |
| Keyed: | No |
| Number of Positions: | 8 |
| Wiring Pattern: | Universal |
| Contact Features | |
| Contact Base Material: | Beryllium copper |
| Contact Mating Area Plating Material: | Gold |
| Contact Mating Area Plating Thickness: | 50.00 µin | 1.27 µm |
| Dimensions | |
| Insulated Conductor Outside Diameter: | 0.057 in | 1.45 mm |
| Solid Wire Range: | .51 mm² | .65 mm² |
| Stranded Wire Range: | .14 mm² | .2 mm² |
| Wire Range: | 22 AWG | 24 AWG | 26 AWG |
| Housing Features | |
| Housing Color: | Light Almond |
| Housing Material: | Polycarbonate |
| Industry Standards | |
| UL Flammability Rating: | UL 94V-0 |
| Mechanical Attachment | |
| Mounting Type: | SL Series Faceplate |
| Packaging Features | |
| Packaging Method: | Poly Bag |
| Packaging Quantity: | 25 |
| Product Type Features | |
| Performance Category: | Category 6 |
| Shielded: | No |
| Applies To: | Panel |
| Cable Type: | Unshielded Twisted Pair |
| Connector Type: | Connector Assembly |
| Dust Cover: | Without |
| Jack Type: | RJ45 |
